Fluidized Bed Dryer

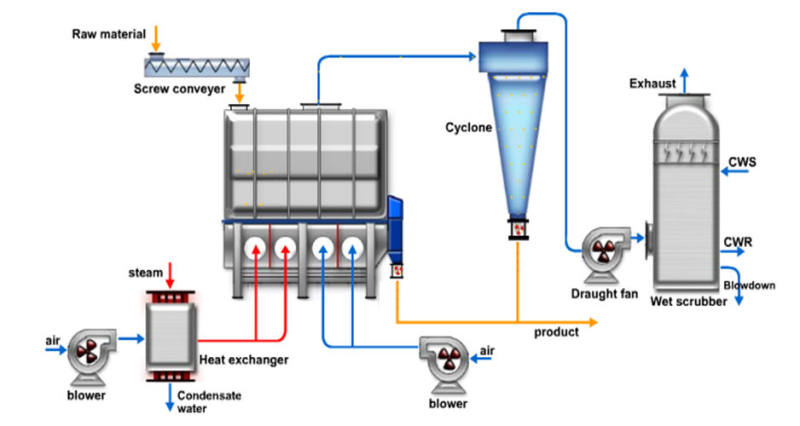

Working Principle:
Preheated gas (air) is passed into the product layer under controlled velocity after being uniformed by the distributor so as to create a fluidized state. The raw material is fed into the bed. The dehydration process can take place under very good heat & mass transfer conditions (good uniformity of the material in the bed). The exhaust air is cleaned by cyclone.


style=

Characteristics:
1. Simple structure, convenient overhaul.
2. Simple steady operation.
3. The air and solid contact evenly with high thermal efficiency.
4. Low expenses of equipment maintenance.
5. Capable of lower temperature drying for the heat sensitive material.


Material to be dried:
GLW fluidized bed dryer is suitable for drying of grain whose average particle size is 50-5000 micron, powder, massive and heat-sensitive material. It is widely used in many fields, including chemical industry, mining, medicine, food, grain processing, feed industry and municipal sewage sludge processing, etc. such as chlorine chloride, salt, corn, sodium bicarbonate, alum, potassium chloride, magnesium sulfate, puffed granule, feed yeast, Adipic Acid, ammonium nitrate, potassium chloride, calcium formate, bluestone, nickle sulfate, coal, ammonium sulfate, crystal sugar, ammonium phosphate, calcium monohydrogen phosphate, citric acid, granular fertilizer, ferrous sulfate, ion exchange resin, lysine, pentaerythritol, drugs, ABS plastic, calcium gluconate, calcium hypochlorite, potassium carbonate, potassium chlorate, tartaric acid, potassium sulfate, polyethylene, polypropylene, polyvinyl-chloride, sodium carbonate, sodium bicarbonate, sodium metasilicate, sodium bichromate, mung bean, sesame, compound amino acid, terylene slice, teflon, sodium perborate, potassium nitrate, etc.


Technical Parameter:


SpecificationBed Area (㎡)Water Evaporation Capability (kg/h)Installed Power (kw)Input Air(m3 /h)Inlet Air Temperature(℃)Size(L×W×H)
GLW0.250.2520~405.5600~1200100~3501250×500×3100
GLW0.50.530~907.51200~2100100~3501400×900×3100
GLW0.750.7545~130111800~3600100~3501600×1060×3280
GLW1.01.060~190152100~1800100~3502100×1060×3500
GLW1.251.2590~21016.53000~6000100~3502600×1060×3500
GLW1.51.5110~250203600~7200100~3502900×1150×3550
GLW1.751.75130~300264200~8100100~3503000×1200×3700
GLW2.02.0150~340274800~9600100~3503600×1200×3700
GLW2.52.5180~11031.56000~12000100~3503900×1450×3800
GLW3.03.0210~500357200~11100100~3503800×1800×4200
GLW4.04.0300~650459600~19200100~3505000×1600×4300
GLW5.05.0350~8006512000~21000100~3505600×1800×5400
GLW10.010.0700~150013025000~50000100~3508000×2500×5000
GLW20.020.01400~320025052000~100000100~35010000×4000×6000


LOCATION :HOME - PRODUCTS

PRODUCTS

MAIN INTRODUCTION

Fluidized bed dryer is also called fluidized bed. The drying chamber is rectangular box type, the bottom is uniform air chamber, and a porous air distribution plate is arranged between the air chamber and the drying chamber. Usually, a plurality of vertical baffles are arranged in the drying chamber to divide the fluidized bed into a plurality of small chambers, and each partition plate can adjust the distance between the bottom and the sieve plate up and down, so that the drying time of the material is more uniform. The powdery granular material is continuously fed into the first chamber of the dryer by the feeder. Since the material is in fluidized state, it can freely move from the first chamber into the adjacent rear chamber, and the dried product is discharged from the last chamber.
